Evaluated since 2001 by users from more than 30 countries

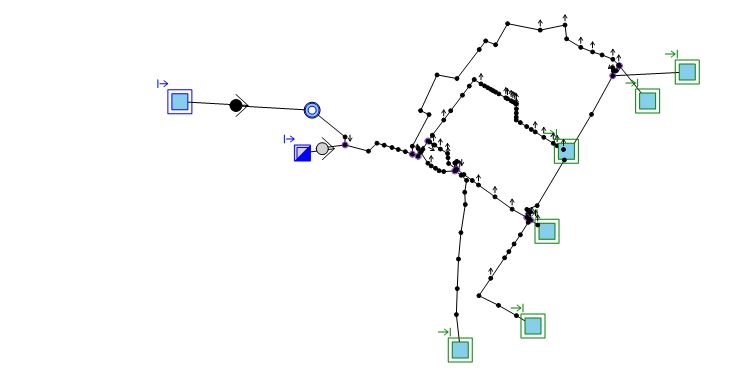

Capable of modeling networks

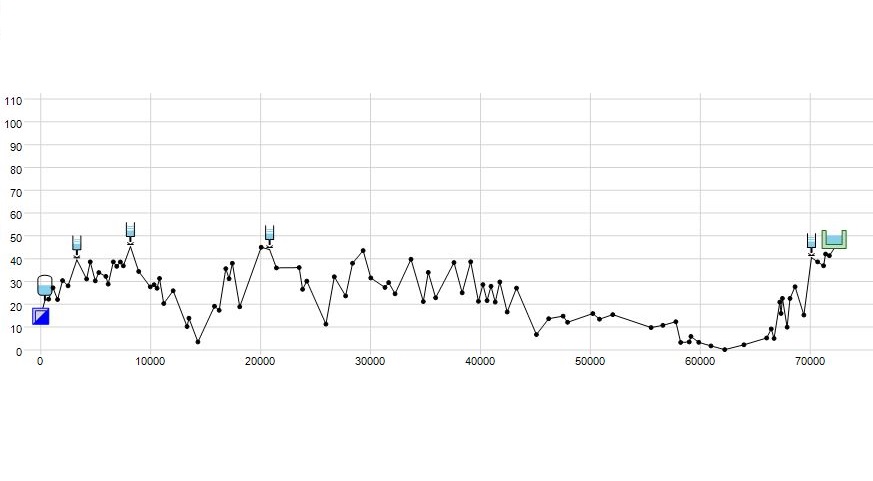

Used in projects with pipelines over 70 km long

HiTrans is a software developed by engineers for engineers

HiTrans is an accurate and easy to use tool that allows the unsteady state modeling of pressurized pipes carrying any fluid, in order to help hydraulic engineers with the task of protecting pipes against "Water Hammer".

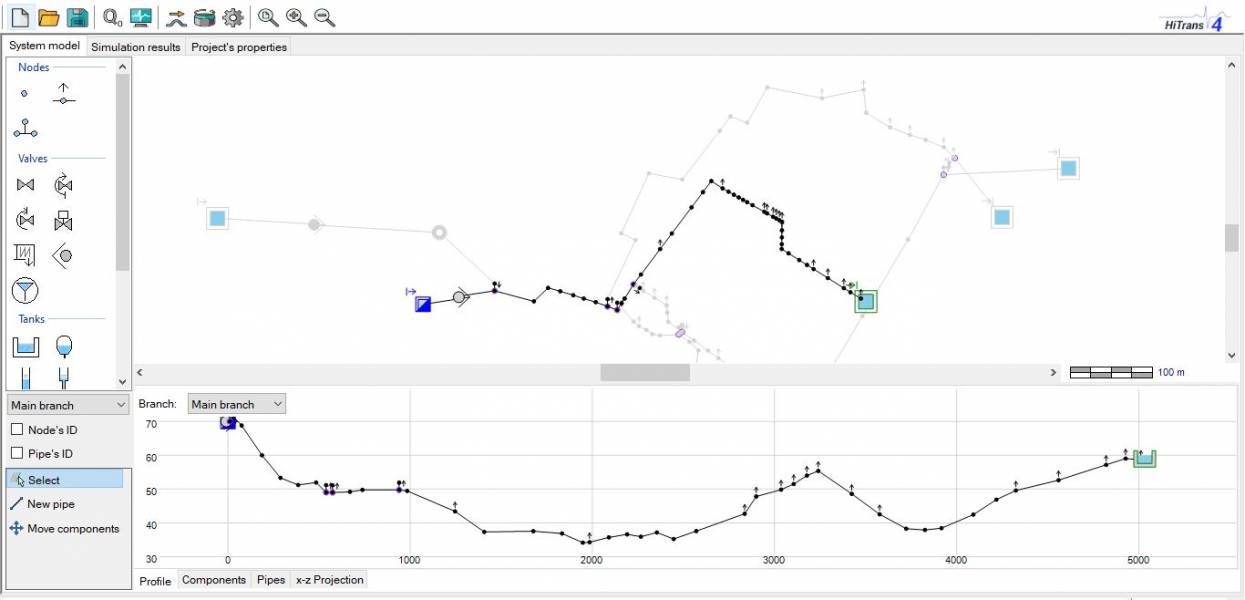

Friendly and intuitive interface

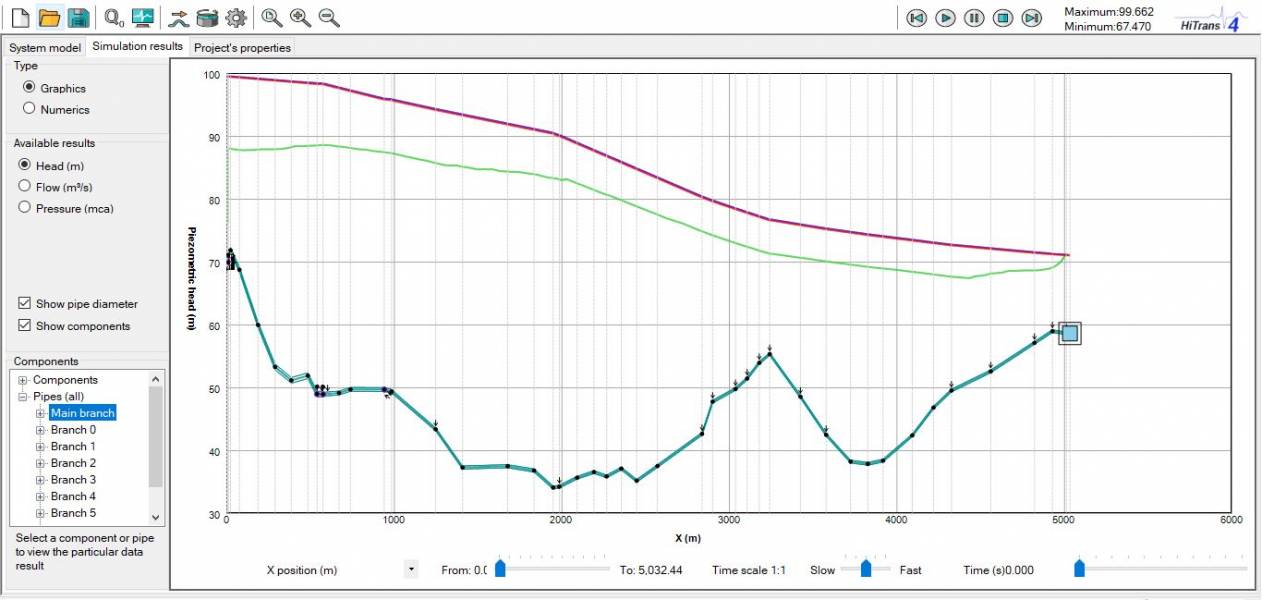

Generates and displays the resulting piezometrics along the pipes

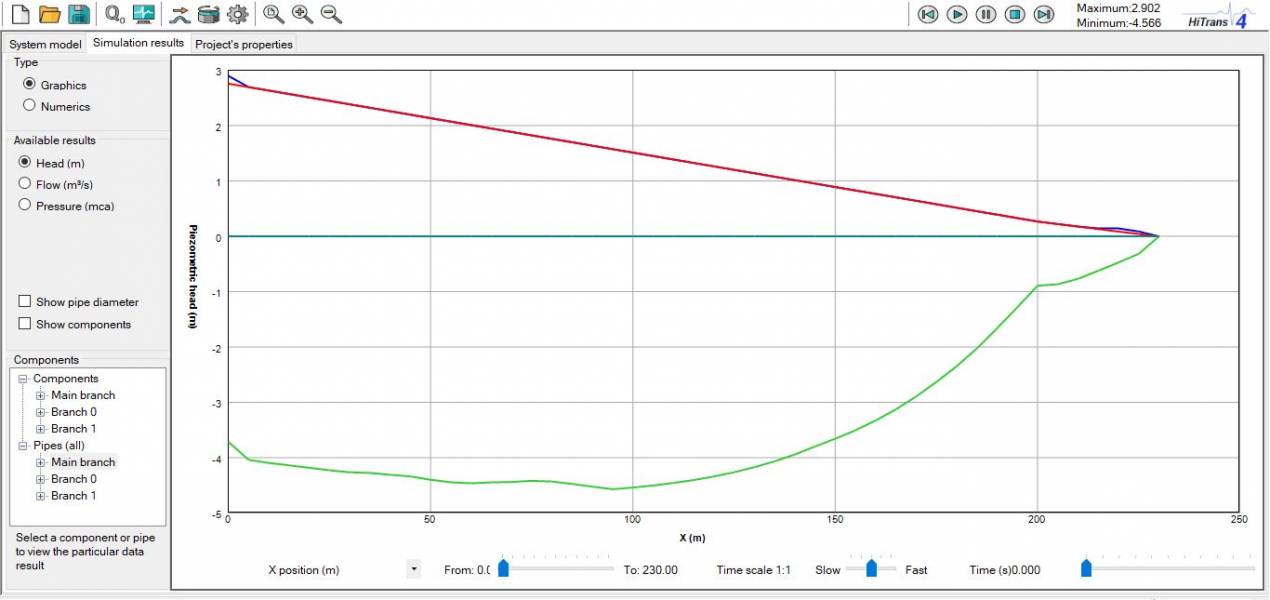

Possibility of choosing different variables to graph

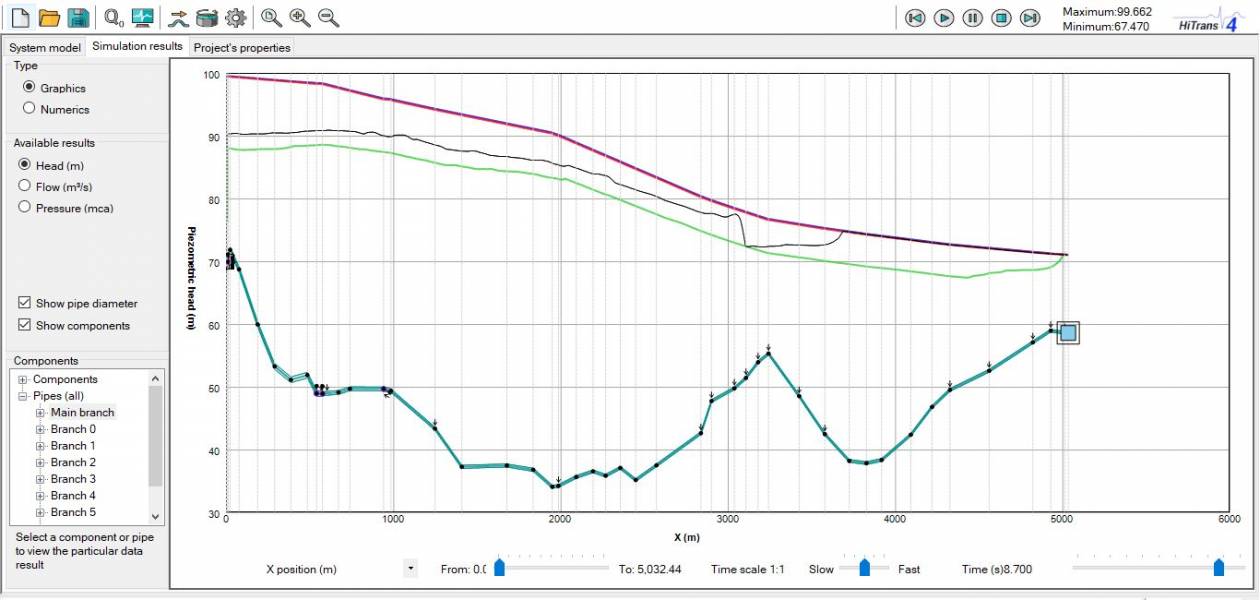

It is possible to visualize the temporal evolution of the graphs

Components modeled by HiTrans:

Nodes	Valves	Tanks	Pumps
Simple node	Fix valve	Constant level tank	Pump
Flow derivation	Opening valve	Air vessel	Serial pumps
Node derivation	Closing valve	Surge tank	Pump station
	Control valve	One way surge tank
	Pressure relief valve	Surge tank with connecting pipe
	Check valve	Surge tank with multiple connections
	Air valve	Surge tank with incoming flow
		Air vessel with air valve
